Loading a URDF File

A core feature of ARMOR is the ability to load Universal Robot Description Format (URDF) files and their supporting assets, such as those created by industry professionals and major manufacturers. The import menu is displayed as a sheet on the bottom of your screen, activated by tapping the Load button at the bottom of the sidebar view.

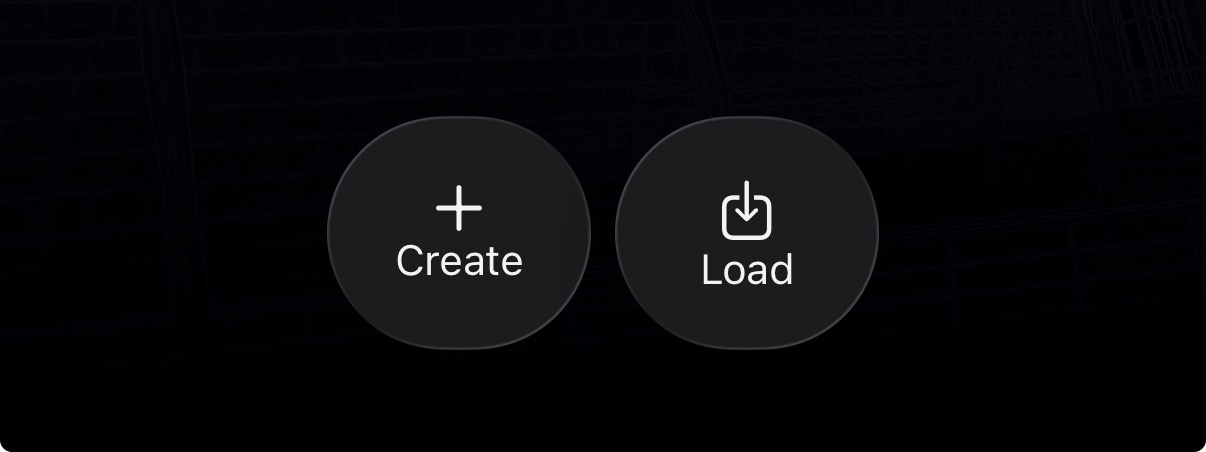

Import Button

Supported Formats

ARMOR supports a variety of file formats, each serving a specific purpose in the modeling pipeline. URDF is the overarching robotics standard that defines the kinematics and dynamics of your model. For the 3D assets themselves, USDZ is the highest quality visual format in the list (though it is not commonly found natively within legacy URDF files). DAE and OBJ also serve as good visual formats, but they are a little older and more limited in their modern rendering capabilities. Finally, STL is the simplest format available, making it highly efficient and commonly used for calculating physical collision meshes.

Format Extension Notes
URDF .urdf Standard ROS unified robot description format
USDZ .usdz High-fidelity visual 3D object format (n/a for collision)
DAE .dae Collada graphics format, for visual 3D objects (legacy)
STL .stl Stereolithography files, useful for simple collision meshes
OBJ .obj Wavefront object format, for visual or collision meshes

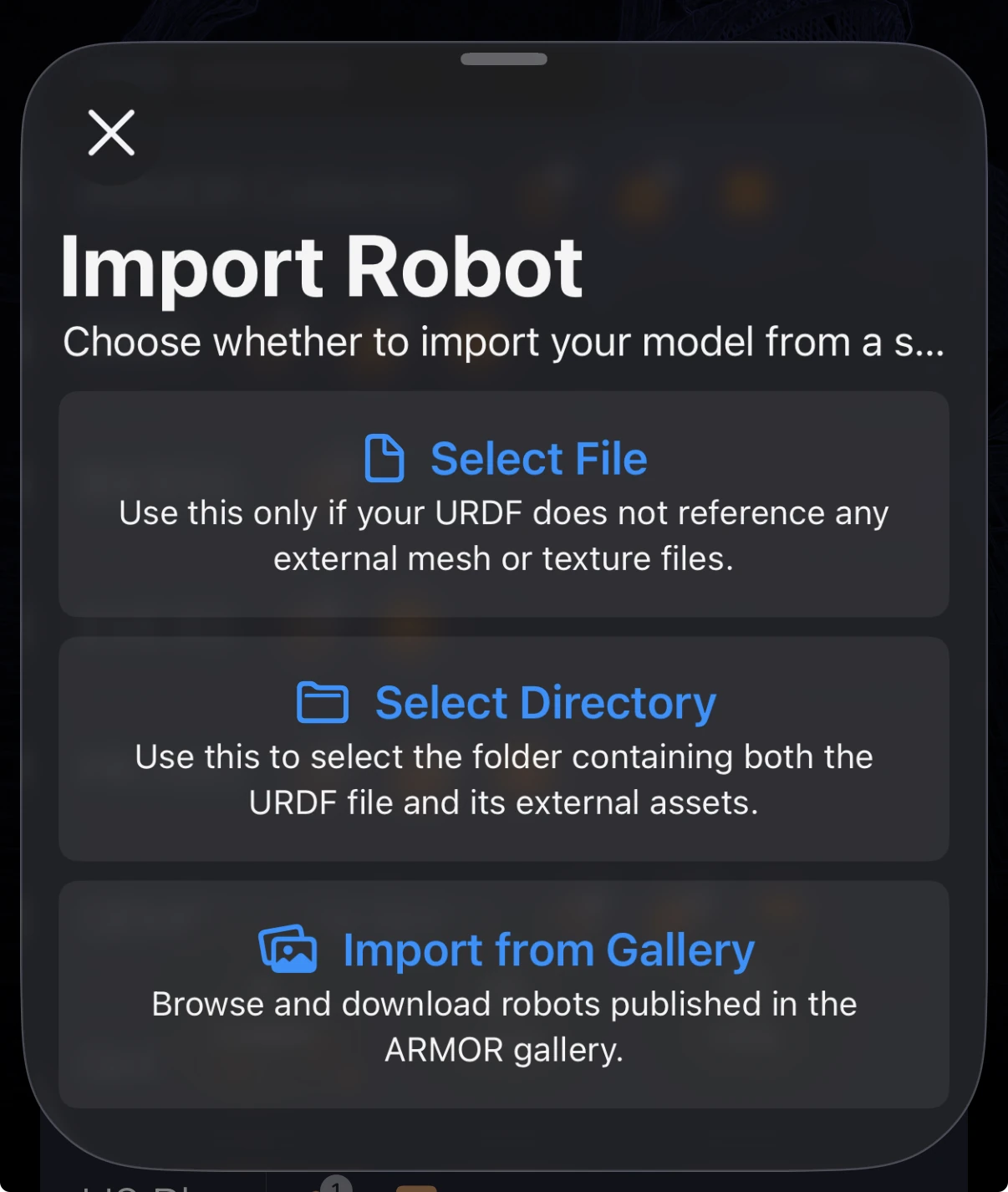

Choosing an Import Method

The first decision you will make is to perform your import on a single file or a directory. The Select File option is suitable for times that you have a single URDF file without any assets (external 3D mesh or image files). However, in most cases you will select the Select Directory option. This will allow the loader to access assets referenced in the URDF file.

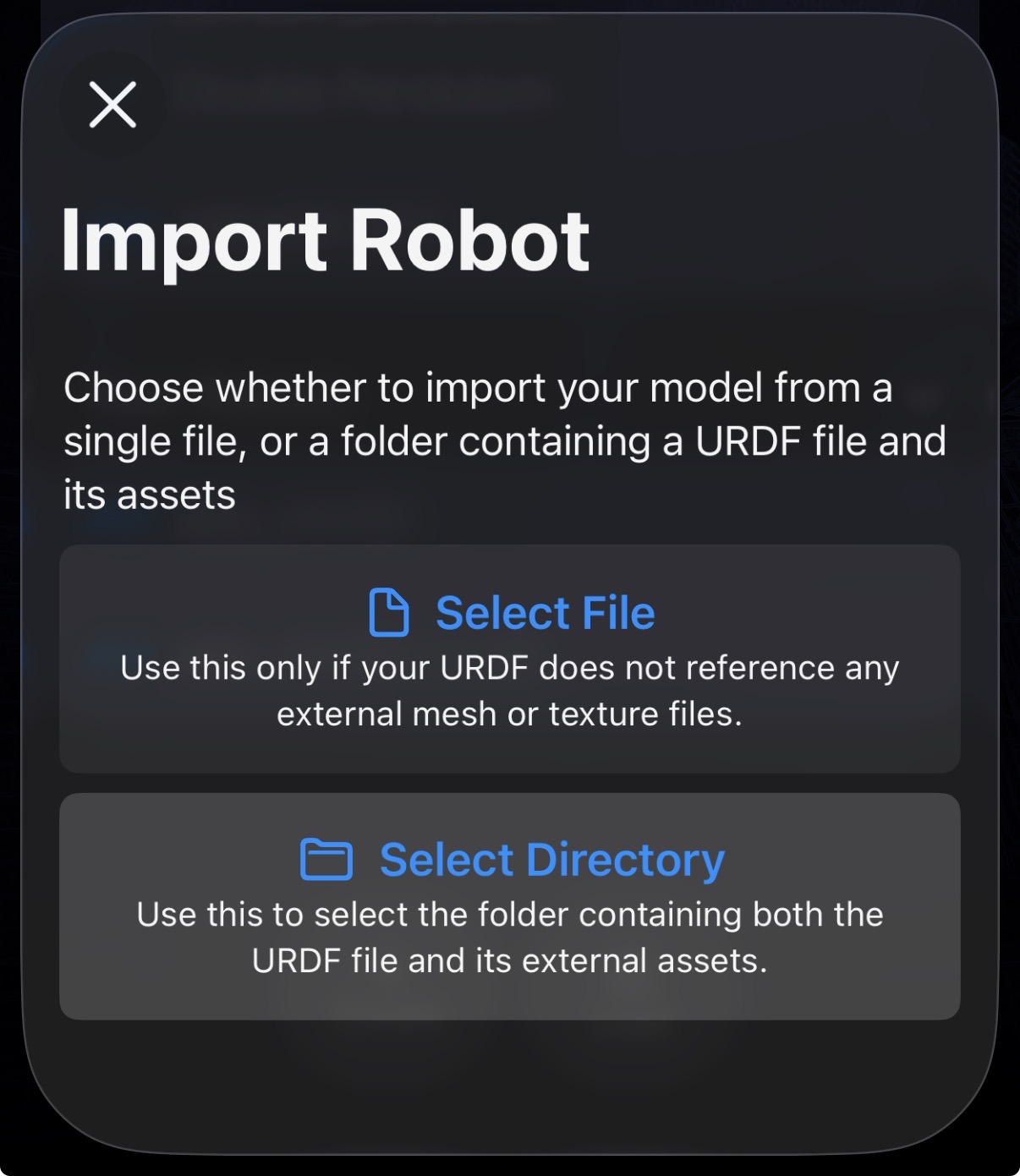

Method Selection

Selecting Your File or Directory

Both options will launch a native file importer, where you will select your file or directory. A hint for the latter: choose a directory that is one or two levels above the URDF file itself, one that contains both the file and its assets.

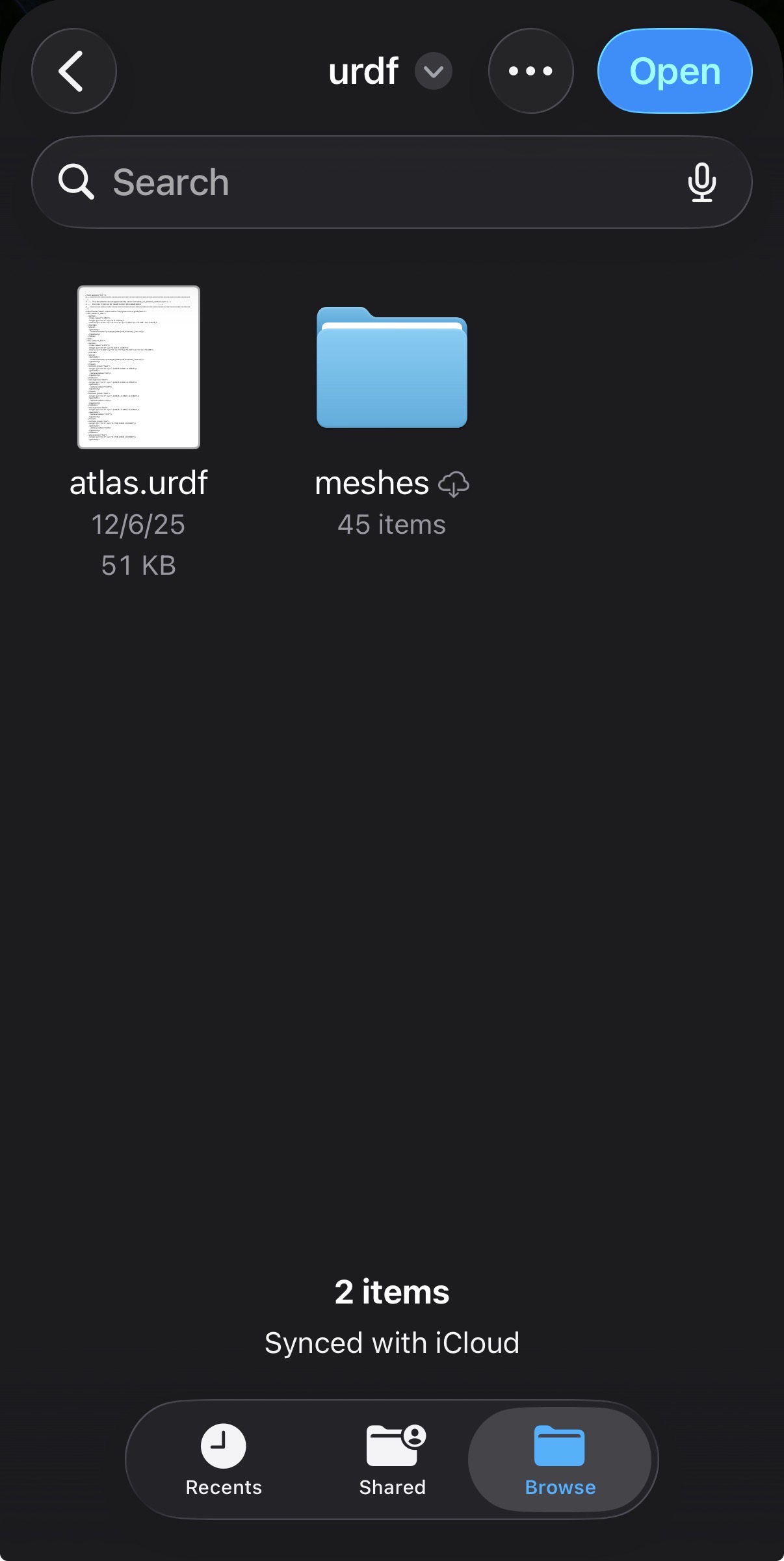

Native File Importer

If you chose the Select File option, the next screen will show a confirmation dialog where you can continue importing the selected file or choose a different one.

If you chose the Select Directory option, the next screen will show a list of URDF files in the directory you chose. Tap on the file you would like to select, which will proceed with importing that file and its assets.

Validating

The next screen will show progress of the import, followed by the result, which will be one of three possibilities:

  1. The import was successful; you may exit and return to the sidebar to view the robot model.
  2. The import failed, usually indicating an invalid URDF file.
  3. The URDF succeeded, but one or more assets failed to load; you may choose to import anyway, or try a different file.

Mesh References

ARMOR resolves mesh paths relative to the URDF file location. Place mesh files (.dae, .stl, .obj, .usdz) in the same folder or a subfolder, and reference them using relative or package:// paths.
